Elastische Lagerungen – Gummi-Metall-Lagerung – SCC
Diese abreißsicheren Machinenfüße mit niedrigem Profil und ovaler Grundplatte kontrollieren mit relativ großen Deformationen die drei Bewegungsrichtungen des Gummis und sind leicht anzubringen.
Ihre Haupteigenschaft besteht darin, die Steifigkeit des Elastomer unter hohen Druck- und Schubbelastungen zu erhöhen und so mögliche Überlasten und Stöße abzufangen.
Der Mittelbolzen, aus äusserst widerstandsfähigem Stahl, ist mechanisch am oberen Metallteil angebracht und gewährleistet Bruchschutz. Ausserdem schränkt er Schwank- und Drehbewegungen ein.
TECHNISCHE EIGENSCHAFTEN:
Elastomer Typ NR oder hochwertiges Elastomer. Arbeitstemperaturen zwischen -40ºC und +70ºC.
Wir haben Marine-Zertifizierung
Erhältlich auch mit höhenverstellbarer Gewindespindel.

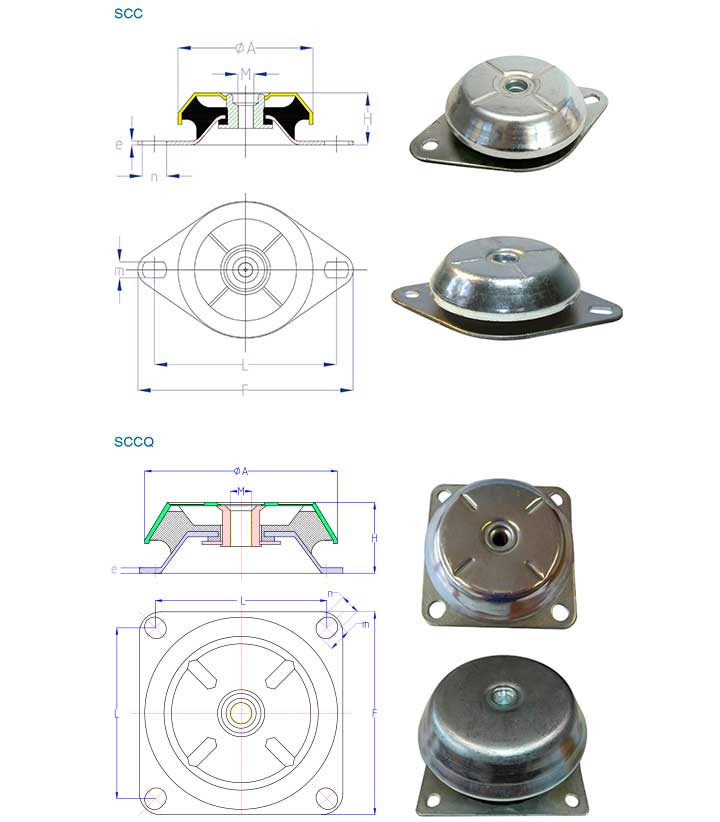

| REF / ART.NR | ABMESSUNGEN | DRUCKBELASTUNG | FEDERKENNLINIE FüR DIE AUSWAHL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sh | ØA | H | L | M | F | e | m | n | LAST | FEDERWEG | |||
| mm. | kg. | mm. | |||||||||||
| SCC | SCC080M10NR35 | 35 | 83 | 36 | 110 | M-10 | 135 | 3 | 11,5 | 15 | 80 | 4,5±1,0 |  |
| SCC080M10NR45 | 45 | 83 | 36 | 110 | M-10 | 135 | 3 | 11,5 | 15 | 130 | 4,5±1,0 | ||
| SCC080M10NR60 | 60 | 83 | 36 | 110 | M-10 | 135 | 3 | 11,5 | 15 | 175 | 4,5±1,0 | ||
| SCC080M10NR75 | 75 | 83 | 36 | 110 | M-10 | 135 | 3 | 11,5 | 15 | 230 | 3,5±1,0 | ||
| SCC080M12NR35 | 35 | 83 | 36 | 110 | M-12 | 135 | 3 | 11,5 | 15 | 80 | 4,5±1,0 | ||
| SCC080M12NR45 | 45 | 83 | 36 | 110 | M-12 | 135 | 3 | 11,5 | 15 | 130 | 4,5±1,0 | ||
| SCC080M12NR60 | 60 | 83 | 36 | 110 | M-12 | 135 | 3 | 11,5 | 15 | 175 | 4,5±1,0 | ||
| SCC080M12NR75 | 75 | 83 | 36 | 110 | M-12 | 135 | 3 | 11,5 | 15 | 230 | 3,5±1,0 | ||
| SCC095M10NR35 | 35 | 92 | 34 | 123 | M-10 | 150 | 3 | 10,0 | 15 | 200 | 5,0±1,0 | | |
| SCC095M10NR45 | 45 | 92 | 34 | 123 | M-10 | 150 | 3 | 10,0 | 15 | 300 | 5,0±1,0 | ||
| SCC095M10NR60 | 60 | 92 | 34 | 123 | M-10 | 150 | 3 | 10,0 | 15 | 600 | 5,0±1,0 | ||
| SCC095M10NR75 | 75 | 92 | 34 | 123 | M-10 | 150 | 3 | 10,0 | 15 | 900 | 5,0±1,0 | ||
| SCC095M12NR35 | 35 | 92 | 34 | 123 | M-12 | 150 | 3 | 10,0 | 15 | 200 | 5,0±1,0 | ||
| SCC095M12NR45 | 45 | 92 | 34 | 123 | M-12 | 150 | 3 | 10,0 | 15 | 300 | 5,0±1,0 | ||
| SCC095M12NR60 | 60 | 92 | 34 | 123 | M-12 | 150 | 3 | 10,0 | 15 | 600 | 5,0±1,0 | ||
| SCC095M12NR75 | 75 | 92 | 34 | 123 | M-12 | 150 | 3 | 10,0 | 15 | 900 | 5,0±1,0 | ||
| SCC110M12NR35 | 35 | 106 | 41 | 143 | M-12 | 169 | 3 | 12,5 | 19 | 200 | 7,0±1,0 | | |
| SCC110M12NR45 | 45 | 106 | 41 | 143 | M-12 | 169 | 3 | 12,5 | 19 | 340 | 7,0±1,0 | ||
| SCC110M12NR60 | 60 | 106 | 41 | 143 | M-12 | 169 | 3 | 12,5 | 19 | 420 | 7,0±1,0 | ||
| SCC110M12NR65 | 65 | 106 | 41 | 143 | M-12 | 169 | 3 | 12,5 | 19 | 425 | 5,0±1,0 | ||
| SCC110M12NR75 | 75 | 106 | 41 | 143 | M-12 | 169 | 3 | 12,5 | 19 | 800 | 5,0±1,0 | ||
| SCC110M16NR35 | 35 | 106 | 41 | 143 | M-16 | 169 | 3 | 12,5 | 19 | 200 | 7,0±1,0 | ||
| SCC110M16NR45 | 45 | 106 | 41 | 143 | M-16 | 169 | 3 | 12,5 | 19 | 340 | 7,0±1,0 | ||
| SCC110M16NR60 | 60 | 106 | 41 | 143 | M-16 | 169 | 3 | 12,5 | 19 | 420 | 7,0±1,0 | ||
| SCC110M16NR65 | 65 | 106 | 41 | 143 | M-16 | 169 | 3 | 12,5 | 19 | 425 | 5,0±1,0 | ||
| SCC110M16NR75 | 75 | 106 | 41 | 143 | M-16 | 169 | 3 | 12,5 | 19 | 800 | 5,0±1,0 | ||
| SCC150M16NR35 | 35 | 150 | 54 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 450 | 9,0±1,5 | | |
| SCC150M16NR45 | 45 | 150 | 54 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 600 | 9,0±1,5 | ||
| SCC150M16NR60 | 60 | 150 | 54 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 800 | 8,0±1,5 | ||
| SCC150M16NR65 | 65 | 150 | 54 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 1000 | 8,0±1,5 | ||
| SCC150M16NR75 | 75 | 150 | 54 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 1000 | 6,0±1,5 | ||
| SCC155M16NR35 | 35 | 150 | 50 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 450 | 9,0±1,5 | | |
| SCC155M16NR45 | 45 | 150 | 50 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 600 | 9,0±1,5 | ||
| SCC155M16NR60 | 60 | 150 | 50 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 800 | 8,0±1,5 | ||
| SCC155M16NR65 | 65 | 150 | 50 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 1000 | 8,0±1,5 | ||
| SCC155M16NR75 | 75 | 150 | 50 | 182 | M-16 | 218 | 4 | 14,0 | 18 | 1000 | 6,0±1,5 | ||
| SCCQ | SCC150M16QNR35 | 35 | 150 | 54 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 450 | 9,0±1,5 | |
| SCC150M16QNR45 | 45 | 150 | 54 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 600 | 9,0±1,5 | ||
| SCC150M16QNR60 | 60 | 150 | 54 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 800 | 8,0±1,5 | ||
| SCC150M16QNR65 | 65 | 150 | 54 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 1000 | 8,0±1,5 | ||
| SCC150M16QNR75 | 75 | 150 | 54 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 1000 | 6,0±1,5 | ||
| SCC155M16QNR35 | 35 | 150 | 50 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 550 | 6,0±1,0 | | |
| SCC155M16QNR45 | 45 | 150 | 50 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 720 | 6,0±1,0 | ||
| SCC155M16QNR60 | 60 | 150 | 50 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 1320 | 6,0±1,0 | ||
| SCC155M16QNR65 | 65 | 150 | 50 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 1430 | 6,0±1,0 | ||
| SCC155M16QNR75 | 75 | 150 | 50 | 132 | M-16 | 170 | 4 | 14,5 | 17 | 1800 | 6,0±1,0 | ||
| SCC160M20QNR45 | 45 | 161 | 58 | 140 | M-20 | 170 | 4 | 14 | 14 | 900 | 7,0±1,0 | | |
| SCC160M20QNR50 | 50 | 161 | 58 | 140 | M-20 | 170 | 4 | 14 | 14 | 1500 | 7,0±1,0 | ||
| SCC160M20QNR60 | 60 | 161 | 58 | 140 | M-20 | 170 | 4 | 14 | 14 | 1600 | 7,0±1,0 | ||
| SCC160M20QNR75 | 75 | 161 | 58 | 140 | M-20 | 170 | 4 | 14 | 14 | 2000 | 7,0±1,0 | ||
| SCC180M20QNR45 | 45 | 180 | 66 | 150 | M-20 | 190 | 5 | 21 | 18,5 | 1120 | 7,0±1,0 | | |
| SCC180M20QNR60 | 60 | 180 | 66 | 150 | M-20 | 190 | 5 | 21 | 18,5 | 2240 | 7,0±1,0 | ||
| SCC180M20QNR75 | 75 | 180 | 66 | 150 | M-20 | 190 | 5 | 21 | 18,5 | 3000 | 6,0±1,0 | ||
| SCC220M24QNR45 | 45 | 224 | 105 | 180 | M-24 | 220 | 4 | 17,5 | 17,5 | 1700 | 17,0±2,0 | | |
| SCC220M24QNR60 | 60 | 224 | 105 | 180 | M-24 | 220 | 4 | 17,5 | 17,5 | 3400 | 17,0±2,0 | ||
| SCC220M24QNR75 | 75 | 224 | 105 | 180 | M-24 | 220 | 4 | 17,5 | 17,5 | 5000 | 15,0±2,0 | ||
